Table Legs & Leg Adaptor
Table Legs & Leg Adaptor
PRODUCT DESCRIPTION:Use the Leg Adaptor + a BuildPro™ Table Leg to support extended table plates at the uniform table height. Screw the table leg into the threaded base of the Leg Adaptor. Attach the Leg Adaptor and Leg assembly to the extended table plate using two flush mount socket head shoulder screws.(included with Leg Adaptor)
| Part No. | Description | Dia. (mm) | Leg Height - L (mm) | * L + Leveling Pad Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TML3130 | Heavy Duty Leg for 900 mm height | 76 | 710 | 767 | 6.8 |
| TML2530 | Heavy Duty Leg for 750 mm height | 76 | 560 | 617 | 5.5 |
| TML31 | Table Leg for 900mm height - M20 Thread | 57 | 740 | 797 | 5.0 |
| TML25 | Standard Leg for 750 mm height | 57 | 590 | 647 | 4.0 |
| Part No. | Description | Height (mm) | Dia. (mm) | Weight (kg) |
|---|---|---|---|---|
| TMLA5 | Leg Adapter for use with TML31 & 25. ( Legs sold separately.) |
144 | 57 | 2.0 |
Adjustable Leg
Adjustable at 25 mm increments, 680 kg static load per leg.
Telescoping adjustable range (L) from 508 mm to 762 mm in height.
| Part No. | Description | Dia. (mm) | Leg Height - L (mm) | * L + Leveling Pad Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TMLR30 | Adjustable Leg, Round | 76 | 508 ~ 762 | 565 ~ 819 | 7.5 |
Application

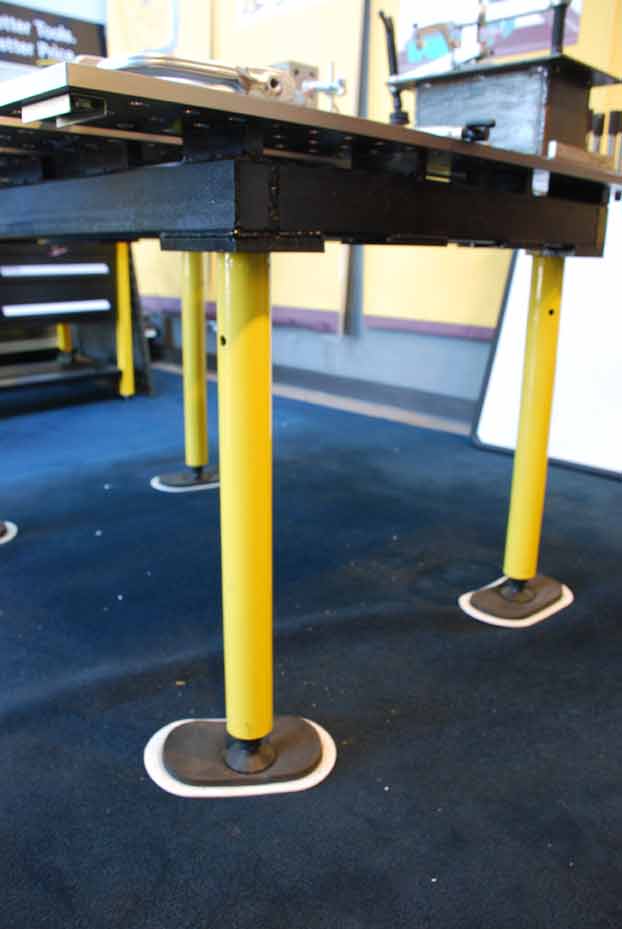

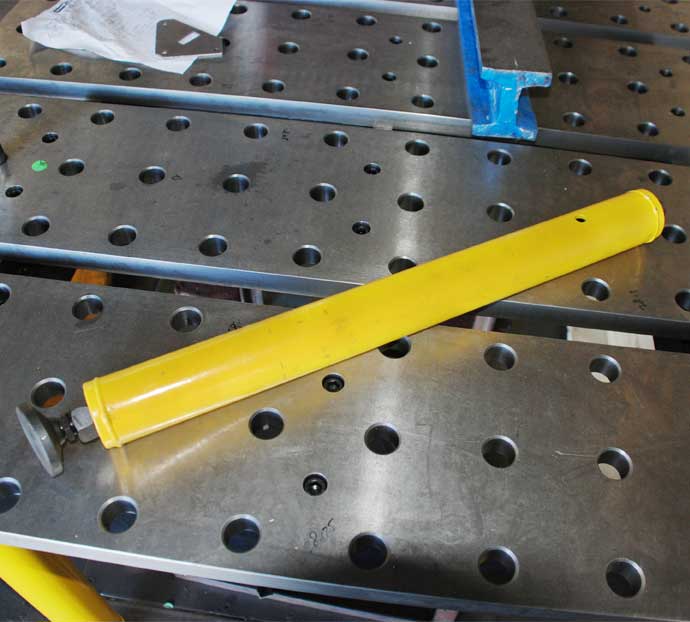

Table Legs are made from strong steel and are powdercoated yellow for lasting looks and durability.

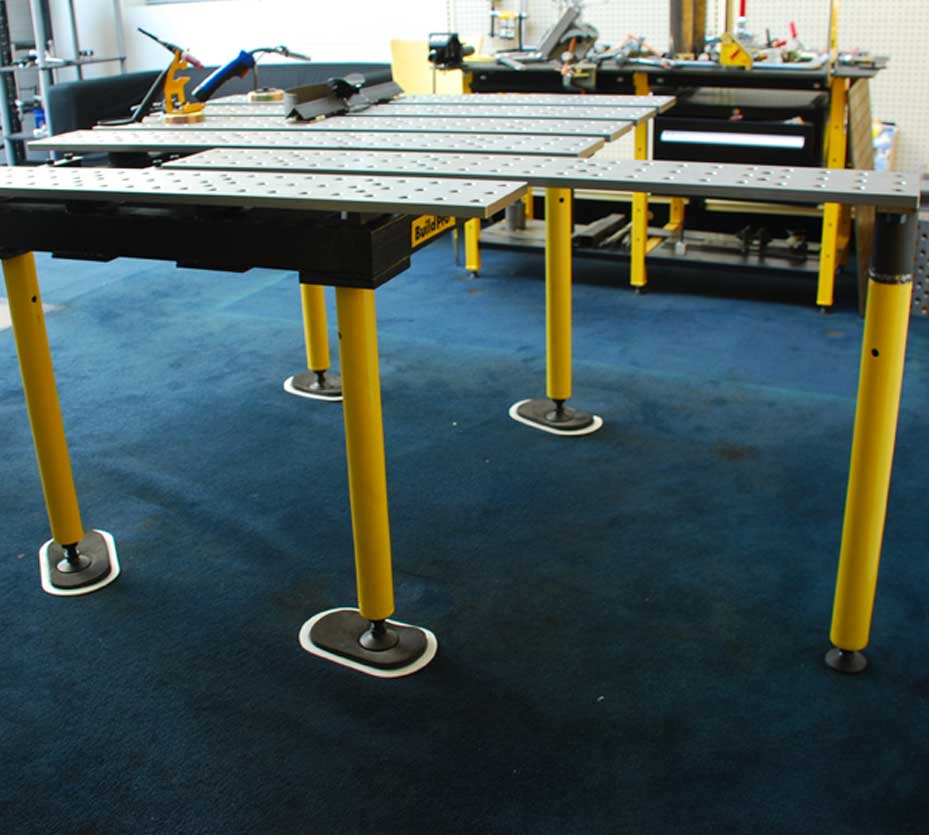

Use Auxiliary Leg Supports + Legs to support plate extensions and reconfigurations.
These legs feature self-leveling feet to ensure proper leveling of your table on uneven surfaces.
