Half Tabletops
Half Tabletops
PRODUCT DESCRIPTION:All BuildPro™ Tabletops below have 16mm thick steel plate, with Ø16mm holes in a 50mm and 40mm slots between plates. The nitriding (heat-treating) process is a mechanical polish and post salt bath oxidative treatment. The benefits of this process include weld spatter resistance and corrosion and wear resistance.
- Surface hardness: HRC 58
- Coefficient of friction: 0.37
- Nitriding case depth: 0.0004" - 0.0008"

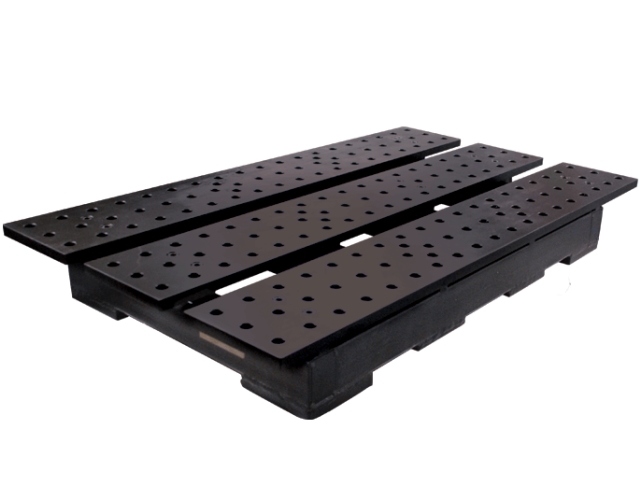

We also provide same robust BuildPro™ frame, with half the plates of the 4' table (3 plates) for space-saving, heavy duty work platform that suits your work space. It is especially suited for robot weld stations for small parts. The compact and light tops make shuttle table mounting easier.
| Part No. | Material/Finish | Height (mm) | Tabletop Dimension (mm) | Slot Width (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TM60610 | Standard | 125 | 1,000 x 560 | 40 | 88 |
| TMQ60610 | Nitrided | 125 | 1,000 x 560 | 40 | 88 |

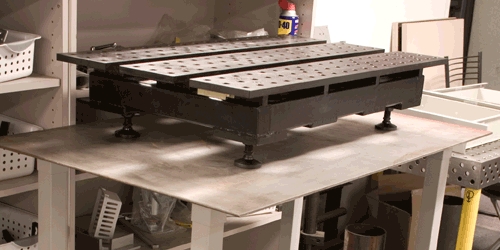

Place the half tabletop in a fixed location or on a heavy duty rolling cart for mobility around the shop.
