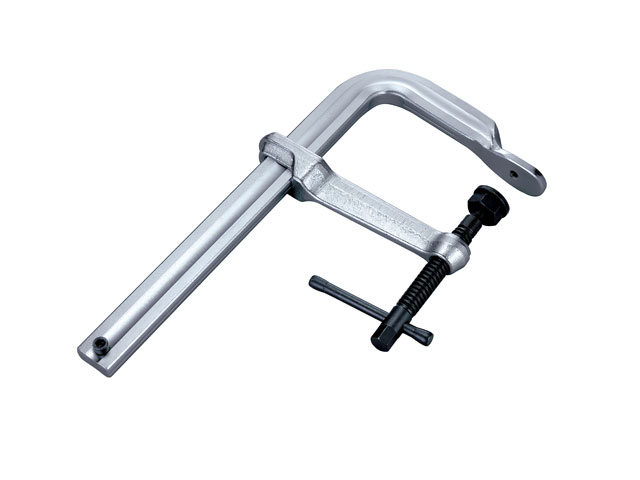

Heavy Duty
Heavy Duty
Clamping Pressure: 4,800 LBS. (2,177 kg)
Throat Depth: 7" (180 mm)
Heavy Duty Replaceable Pads
| Part No. | Capacity - A (mm) | Throat Depth - B (mm) | Clamping Pressure (kg) | Rail Size - C (mm) | Tapped Hole - D | Weight(kg) |
|---|---|---|---|---|---|---|
| UP125M | 318 | 180 | 2177 | 40 x 19 | M10 | 5.6 |
| UP165M | 419 | 180 | 2177 | 40 x 19 | M10 | 6.2 |
| UP205M | 521 | 180 | 2177 | 40 x 19 | M10 | 6.8 |
| UP245M | 622 | 180 | 2177 | 40 x 19 | M10 | 7.5 |
| UP405M | 1020 | 180 | 2177 | 40 x 19 | M10 | 10.0 |
| UP605M | 1537 | 180 | 2177 | 40 x 19 | M10 | 12.7 |
