Frame Builder
Frame Builder

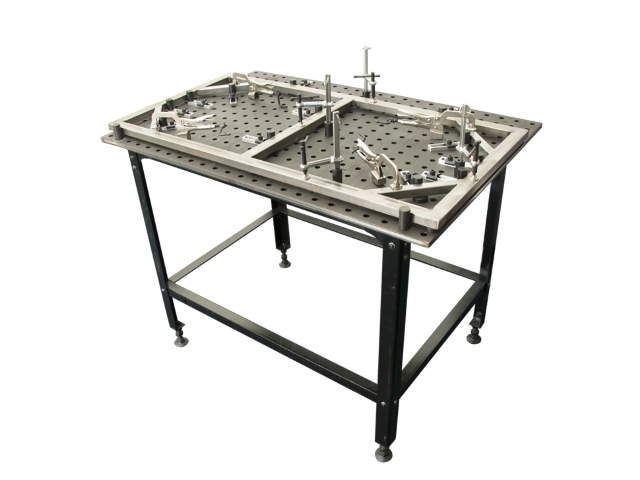

Tabletop features a Nitrided Finish for weld splash, rust, and scratch resistance.| Holes | Tabletop Thickness | Grid Pattern | Tabletop Size |
|---|---|---|---|
| 16 mm | 16 mm | 50 x 50 mm | 1100 x 800 mm |
ONE Table, TWO Height Settings:
- Table top height without legs attached: 180 - 208 mm (with levelers)
- Table top height with legs attached (included): 880 - 908 mm

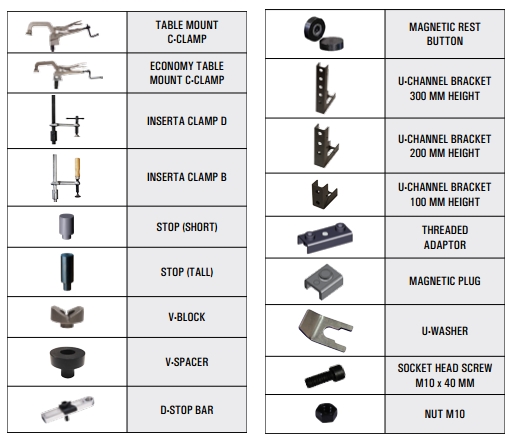

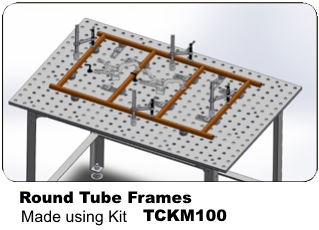

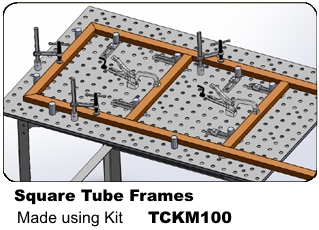

| Part No. | Description | P/N: TCKM100 |

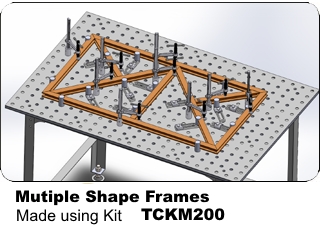

P/N: TCKM200 |

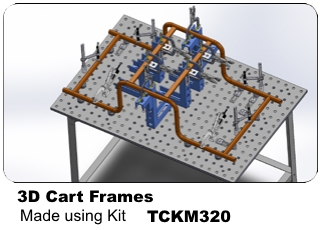

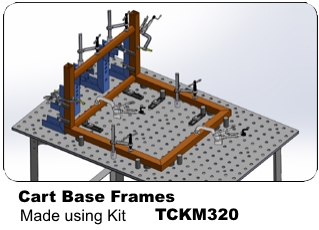

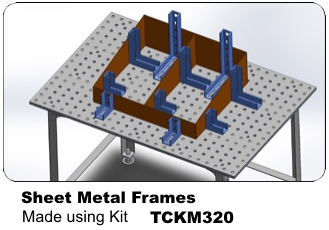

(Multiple Shapes) Super Kit P/N: TCKM320 |
|---|---|---|---|---|
| PT09K | TABLE MOUNT C-CLAMP | 2 | 2 | 2 |
| PT07K | ECONOMY TABLE MOUNT C-CLAMP | 2 | 2 | 2 |
| UDN6150 | INSERTA CLAMP D | 3 | 6 | 8 |
| UBN6100 | INSERTA CLAMP B | 3 | 6 | 6 |
| TBXMS2538 | STOP (short) | 6 | 9 | 12 |
| T64205 | STOP (tall) | 6 | 9 | 12 |
| TBXV412 | V-BLOCK | 12 | 18 | 24 |
| T64211 | V-SPACER | 4 | 4 | 6 |
| T60632 | D-STOP BAR | 8 | 14 | 16 |
| T50737 | MAGNETIC REST BUTTON | 12 | 18 | 20 |
| TCX61030 | U-Channel Bracket 300 mm Height | - | - | 2 |
| TCX61020 | U-Channel Bracket 200 mm Height | - | - | 4 |
| TCX61010 | U-Channel Bracket 100 mm Height | - | - | 4 |
| TXB6204 | THREADED ADAPTOR | 8 | 14 | 16 |
| TCXM5601 | MAGNETIC PLUG | - | - | 12 |
| PTB634-01 | U-WASHER | 16 | 28 | 36 |
| (Accessories) | SOCKET HEAD SCREW M10 x 40 MM | 16 | 28 | 36 |
| (Accessories) | NUT M10 | 16 | 28 | 36 |
| P/N | NET WEIGHT (KG) |
|---|---|
| TCKM100 | 12 |
| TCKM200 | 18 |
| TCKM320 | 42 |
Frames
