Series 36202

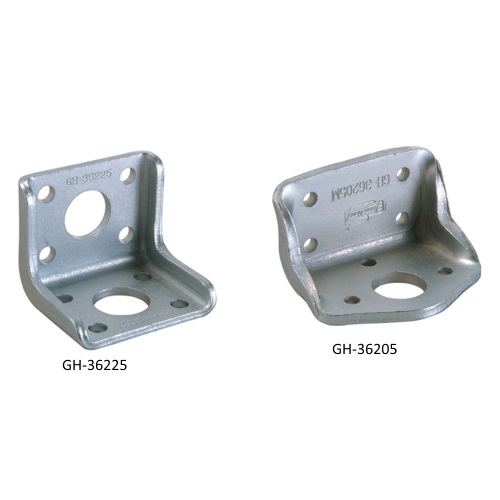

GH-36205 & GH-36225
| Model | Description |
|---|---|
| GH-36205 | Mounting Plate for GH-36204 |
| GH-36225 | Mounting Plate for GH-36224 |
Series 36202
Supplied with jam nut on the work side

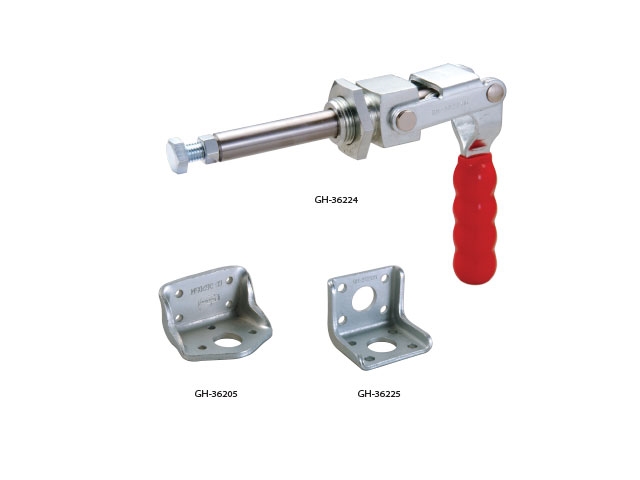

All three of these plunger type push/pull clamps have threaded collars for mounting in threaded, or through holes. All clamps are supplied with thin lock nuts. Threaded mounting plates and brackets are also available as options.

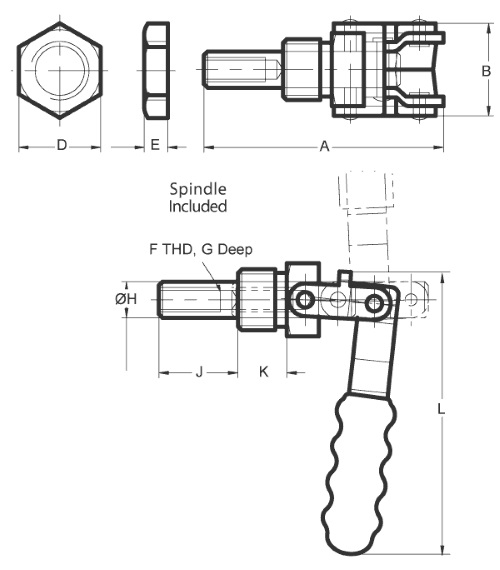

| Model Number | Cross Ref. DE-STA-CO | Holding Capacity | Spindle Supplied | Plunger Stroke | A | B | D | E | F | G | H | J | K | L | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GH-36202 | 602 | 200 LBS. (91 kg) |
GH-SA-14112 | 0.8 (20) |
2.53 (64.3) |
0.95 (24) |
0.91 (23) |
0.25 (6.4) |
1/4-20 | 0.62 (15.8) |
0.37 (9.4) |
0.84 (21.3) |
0.50 (12.7) |
3.1 (78) |
0.25 LB. (113 g) |
| GH-36204 | 604 | 300 LBS. (136 kg) |
GH-SA-56200 | 1.57 (40) |
4.31 (109.5) |
1.13 (28.6) |
1.18 (30) |
0.25 (6.4) |
5/16-18 | 1" (25.4) |
0.43 (11) |
1.6 (40.7) |
0.63 (16) |
3.86 (98) |
0.60 LB. (270 g) |
| GH-36204-SS | 604-SS | Stainless Steel Model of GH-36204 | |||||||||||||
| GH-36224 | 624 | 700 LBS. (318 kg) | GH-SA-38300 | 2.63 (66.7) |
6.66 (169.2) |
1.57 (40) |
1.61 (41) |
0.25 (6.4) |
3/8-16 | 1.26 (32) |
0.63 (15.9) |
2.72 (69) |
0.87 (22) |
5.63 (143) |
1.52 LBS. (690 g) |
UNIT: inch (metric mm)
