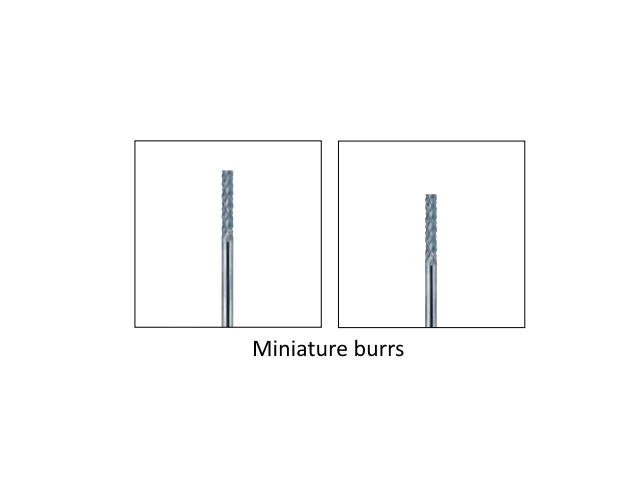

Miniature burrs
Miniature burrs

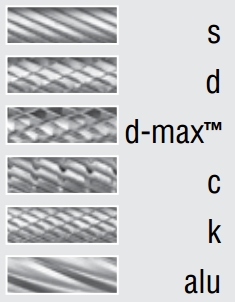

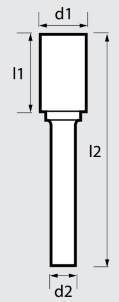

| Ref Model | d1 mm | l1 mm | d2 mm | l2 mm | s | d | d-max™ | c | k | alu | I.S.O. Ref. | SCTI Nr. | IPC Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

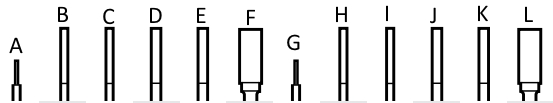

| A | 1.5 | 6 | 3 | 38 | GT1050 | GT1050D | - | - | - | - | - | SA-41M | 49 |
| B | 2.4 | 13 | 2.4 | 38 | GT1100 | GT1100D | - | - | - | - | - | SA-63M | 49 |
| C | 2.4 | 13 | 2.4 | 63 | - | GT1100DL | - | - | - | - | - | - | 49 |
| D | 3 | 13 | 3 | 38 | GT1200 | GT1200D | - | - | T1200K | - | A031303 | SA-43M | 49 |
| E | 3 | 13 | 3 | 63 | - | GT1200DL | - | - | - | - | A031303 | - | 49 |
| F | 6 | 13 | 3 | 45 | GT1240 | GT1240D | - | - | - | - | A061303 | SA-51M | 49 |
| G | 1.5 | 6 | 3 | 38 | GT1052 | GT1052D | - | - | - | - | - | SB-41M | 49 |
| H | 2.4 | 13 | 2.4 | 38 | GT1102 | GT1102D | - | - | - | - | - | SB-63M | 49 |
| I | 2.4 | 13 | 2.4 | 63 | - | GT1102DL | - | - | - | - | - | - | 49 |
| J | 3 | 13 | 3 | 38 | GT1202 | GT1202D | - | - | T1202K | - | B031303 | SB-43M | 49 |
| K | 3 | 13 | 3 | 63 | - | GT1202DL | - | - | - | - | B031303 | - | 49 |
| L | 6 | 13 | 3 | 45 | GT1242 | GT1242D | - | - | - | - | B061303 | SB-51M | 49 |

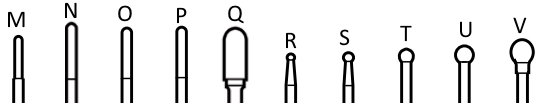

| M | 2.5 | 11 | 3 | 38 | GT3100 | GT3100D | - | - | - | - | - | SC-41M | 49 |
| N | 3 | 13 | 3 | 38 | GT3200 | GT3200D | - | GT3200C | GT3200K | - | C031303 | SC-42M | 49 |
| O | 3 | 13 | 3 | 50 | - | GT3200DL | - | - | - | - | C031303 | SC-42ML2 | 49 |
| P | 3 | 13 | 3 | 75 | - | GT3200DXL | - | - | - | - | C031303 | SC-42ML3 | 49 |
| Q | 6 | 13 | 3 | 45 | GT3240 | GT3240D | - | - | - | - | C061303 | SC-51M | 49 |
| R | 2.5 | 2.3 | 3 | 38 | GT7100 | GT7100D | - | - | - | - | - | SD-41M | 49 |
| S | 3 | 2.7 | 3 | 38 | GT7200 | GT7200D | - | GT7200C | GT7200K | - | D030303 | SD-42M | 49 |
| T | 4 | 3.6 | 3 | 45 | GT7300 | GT7300D | - | - | - | - | D040403 | SD-52M | 49 |
| U | 5 | 4.7 | 3 | 38 | GT7350 | GT7350D | - | - | - | - | D050503 | SD-53M | 49 |
| V | 6 | 5.4 | 3 | 38 | GT7240 | GT7240D | - | GT7240C | GT7240K | - | D060603 | SD-51M | 49 |

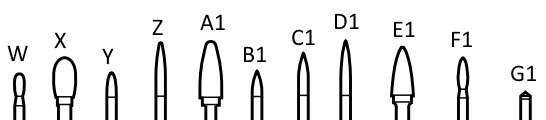

| W | 3 | 6 | 3 | 38 | GT5220 | GT5220D | - | - | - | - | E030603 | SE-41M | 49 |
| X | 6 | 10 | 3 | 42 | GT5240 | GT5240D | - | - | - | - | E061003 | SE-51M | 49 |
| Y | 3 | 6 | 3 | 38 | GT9220 | GT9220D | - | - | - | - | F030603 | SF-41M | 49 |
| Z | 3 | 13 | 3 | 38 | GT9200 | GT9200D | - | - | T9200K | - | F031303 | SF-42M | 49 |
| A1 | 6 | 13 | 3 | 45 | GT9240 | GT9240D | - | - | - | - | F061303 | SF-51M | 49 |
| B1 | 3 | 6 | 3 | 38 | GT6220 | GT6220D | - | - | - | - | G030603 | SG-41M | 49 |
| C1 | 3 | 10 | 3 | 38 | GT6230 | GT6230D | - | - | - | - | G031003 | SG-43M | 49 |
| D1 | 3 | 13 | 3 | 38 | GT6200 | GT6200D | - | - | T6200K | - | G031303 | SG-44M | 49 |
| E1 | 6 | 13 | 3 | 45 | GT6240 | GT6240D | - | - | - | - | G061303 | SG-51M | 49 |
| F1 | 3 | 8 | 3 | 38 | GT5200 | GT5200D | - | - | - | - | H030803 | SH-41M | 49 |
| G1 | 3 | 1.5 | 3 | 38 | GT2810 | GT2810D | - | - | - | - | - | SK-42M | 49 |

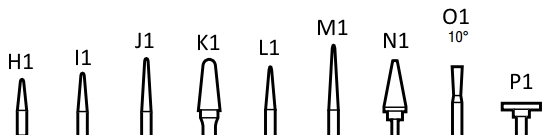

| H1 | 3 | 8 | 3 | 38 | GT4200 | GT4200D | - | - | - | - | L030803 | - | 49 |
| I1 | 3 | 9.5 | 3 | 38 | GT4210 | GT4210D | - | - | - | - | - | SL-41M | 49 |
| J1 | 3 | 13 | 3 | 38 | GT4220 | GT4220D | - | - | - | - | L031303 | SL-42M | 49 |
| K1 | 6 | 13 | 3 | 45 | GT4240 | GT4240D | - | - | - | - | L061303 | SL-51M | 49 |
| L1 | 3 | 11 | 3 | 38 | GT2200 | GT2200D | - | - | GT2200K | - | M031103 | SM-42M | 49 |
| M1 | 3 | 16 | 3 | 38 | GT2220 | GT2220D | - | - | - | - | M031603 | SM-43M | 49 |
| N1 | 6 | 13 | 3 | 45 | GT2240 | GT2240D | - | - | - | - | M061303 | SM-51M | 49 |
| O1 | 3 | 7 | 3 | 3 | GT8200 | GT8200D | - | - | - | - | N030703 | SN-42M | 49 |
| P1 | 10 | 1.6 | 3 | 34 | GT8240 | - | - | - | - | - | - | - | 49 |
